Application Restore - MS Exchange Server

CA ARCserve D2D allows you to not only protect and recover your data, but also helps you to get the Microsoft Exchange Server application that will use that data back up and running. The Microsoft Exchange Server recovery can only be made using the Restore by Recovery Point method.

The following versions of Microsoft Exchange Server are supported by CA ARCserve D2D:

• Exchange 2003 - Single Server Environment.
• Exchange 2007 - Single Server Environment, Local Continuous Replication (LCR), and Cluster Continuous Replication (CCR) environment.

  For Exchange 2007 CCR environment, CA ARCserve D2D must be installed on both the active node and passive node of Microsoft Cluster. Backup can be performed from an active node and passive node, but restore can only be performed to an active node.

• Exchange 2010 - Single Server Environment and Database Availability Group (DAG) environment.

  For Exchange 2010 DAG environment, CA ARCserve D2D must be installed on all member servers in the DAG group. Backup can also be performed from any member server for both active and passive database copies, but restore can only be performed to an active database copy.

  Note: Microsoft Exchange Server 2003 Cluster Environment and Microsoft Exchange Server 2007 Single Copy Cluster (SCC) environment are not supported by CA ARCserve D2D.

Microsoft Exchange Server can be restored at the following levels:

• Microsoft Exchange Writer Level

  You can perform restore at Microsoft Exchange Writer level if you want to restore all the Microsoft Exchange Server data.

• Storage Group Level

  You can perform restore at Microsoft Exchange Storage Group level if you want to restore a specific Storage Group.

  (Does not apply for Microsoft Exchange Server 2010).

• Mailbox Store Level (Exchange 2003)

  You can perform restore at Mailbox Store level if you want to restore a specific Mailbox Store.

• Mailbox Database Level (Exchange 2007 and 2010)

  You can perform restore at Mailbox Database level if you want to restore a specific Mailbox Database.

Restore Microsoft Exchange Server Application

Note: When performing a Microsoft Exchange Server database restore (to either the original location or a recovery storage group/recovery database), you must ensure that the account also has the following administrative privileges:

• Exchange 2003 - Exchange Full Administrator Role
• Exchange 2007/2010 - Exchange Organization Administrator or Exchange Server Administrator Role

1. From the CA ARCserve D2D home page (or CA ARCserve D2D Monitor), select Restore.

   The restore methods selection dialog opens.

2. Click the Browse Recovery Points option.

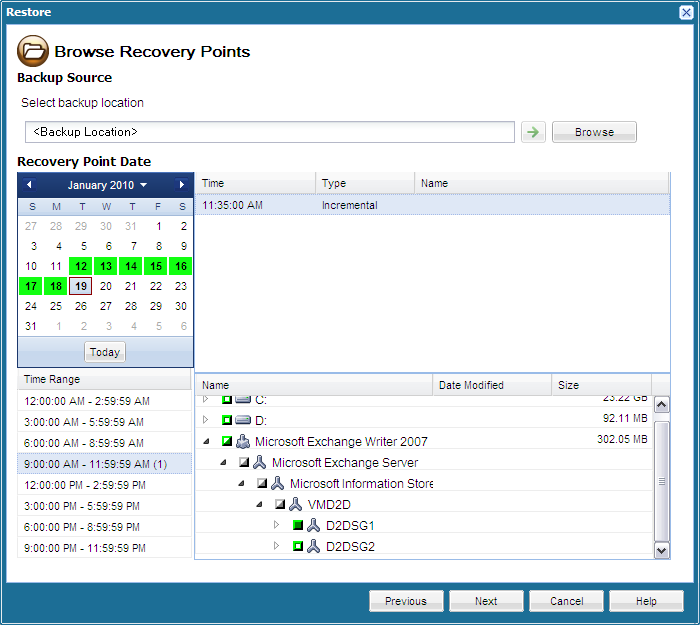

   The Browse Recovery Points dialog opens.

3. Select the recovery point (date and time) and then select the Microsoft Exchange database to be restored.

   The corresponding marker box becomes filled (green) to indicate that the database has been selected for the restore.

   Note: If you do not want the transaction log files to be applied after restore, you need to manually delete it before the restore is performed. For more information about manually deleting transaction log files, refer to the Microsoft Exchange Server documentation.



4. Click Next.

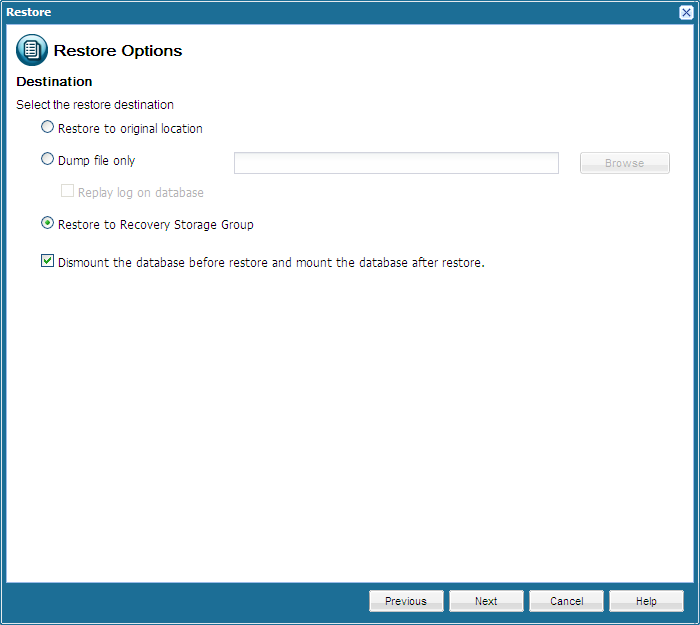

   The Restore Options dialog opens.



5. Select the destination for the restore.

   The available options are to restore to the original location of the backup, restore the dump file only, or restore to a Recovery Storage Group/Recovery Mailbox Database.

   • Restore to original location

     Restores to the original location from where the backup image was captured.

     Note: When restoring the CA ARCserve D2D logs folder to the original location, the files that are in the logs folder will be skipped.

   • Dump file only

     Restores the dump files only.

     For this option, CA ARCserve D2D will restore the Microsoft Exchange database file to a specified folder, and will not bring it online after recovery. You can then move this file to a different server and mount it to exchange server manually to view data contained in it.

     Note: When a Recovery Mailbox Database exists, restore with 'Dump file only' option will fail.

     • Replay log on database

       Specifies that when the database files are dumped to the destination folder, you can replay and apply all Microsoft Exchange transaction log files and commit them to the database file. When the database next starts, and transaction log files that were not yet written to the database files are then applied before the database is again made available to you.

       Note: This option is not applicable for Microsoft Exchange Server 2003

   • Restore to Recovery Storage Group (Exchange 2007)
   • Restore to Recovery Database (Exchange 2010)

     Restores the database to a Recovery Storage Group (RSG) or Recovery Database.

     An RSG is a storage group that can be used for recovery purposes. You can restore a Microsoft Exchange Mailbox Database from a backup in a Recovery Storage Group and then recover and extract data from it, without affecting the production database that is being accessed by end users.

     • If single storage group or database (except a public folder database) from the same storage group are selected to restore, the default restore destination is "Restore to Recovery Storage Group" (or "Restore to Recovery Database").
     • If multiple storage groups or databases from multiple storage groups are selected to restore, Exchange can only be restored to the original location or restore with "Dump file only" option. The default restore destination is "Restore to original location".

     Before restoring an Exchange 2007 database to a Recovery Storage Group, you must create a Recovery Storage Group and Mailbox Database with the same name.

     For example, if you want to restore MailboxDatabase1 from the First Storage Group to a Recovery Storage Group, you need to create a Recovery Storage Group and add the database "MailboxDatabase1" to the Recovery Storage Group.

     Note: This option is not applicable for Microsoft Exchange Server 2003

   • Dismount the database before restore and mount the database after restore

     Normally before a restore, Microsoft Exchange will perform some checks to ensure the following:

     • The database to be restored is in "Dismounted" status.
     • The database is not restored unexpectedly.

       To protect a Microsoft Exchange production database from being restored unexpectedly, a switch is added to allow the database to be overwritten during the restore process. Microsoft Exchange will refuse to restore a database if this switch is not set.

     For CA ARCserve D2D, these two options are controlled by this "Dismount the database before restore and mount the database after restore" option. With this option, CA ARCserve D2D lets you launch the restore process automatically without any manual operations. (You can also specify to dismount/mount database manually).

     • If checked, specifies that the recovery process will automatically dismount the Exchange database before the restore process and then mount the database after the restore process is completed. In addition, if checked, this option will also allow the Exchange database to be overwritten during the restore.
     • If unchecked, specifies that the recovery process will not automatically dismount the Exchange database before recovery and mount the database after recovery.

       The Exchange administrator would have to perform some manual operations such as dismount the Exchange database, set the Allow Overwritten flag on the database, and mount the Exchange database. (The recovery procedure is performed by Exchange during the mounting of the database).

       In addition, if unchecked, this option will not allow the Exchange database to be overwritten during restore.

6. Click Next.

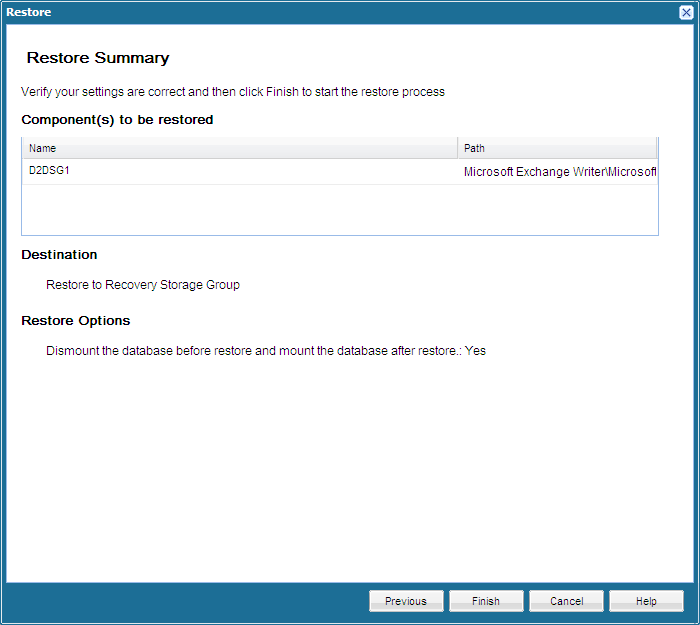

   The Restore Summary dialog opens.



7. Review the displayed information to verify that all the restore options and settings are correct.
   • If the summary information is not correct, click Previous and go back to the applicable dialog to change the incorrect setting.
   • If the summary information is correct, click Finish to launch the restore process.
